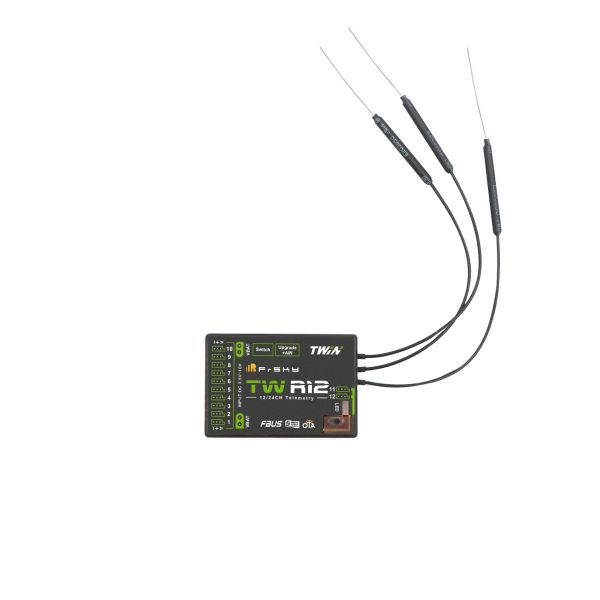

FrSky TW R12_Dual 2.4G, equipped with configurable ports, triple antennas, and dual XT30 power input connectors

FrSky TW R12_Dual 2.4G, equipped with configurable ports, triple antennas, and dual XT30 power input connectors

Overview

TWIN series receiver features a new stable TW protocol that benefits from simultaneously integrating dual active 2.4G frequency bands. The TW active-active protocol is different from the general active-standby redundancy solutions, with the TW protocol, dual 2.4G frequency bands are active on the TW series receiver at the same time. This receiver is equipped with 3×2.4G antennas and designed for RC users who want to benefit from resilience and long-range in their radio communications.

The configurable channel ports on TW R12 & TW SR12 receivers are a big feature, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. By setting the port to use FBUS protocol in the ETHOS system, the signal control and telemetry can be connected to any device (XACT servos, ADV Sensors, etc.) that supports FBUS protocol through only one line to achieve bidirectional transmission, also simplifying the model build using fewer wires.

TW R12 & TW SR12 provides a socket that can be used to connect the switch panel to enable the built-in Power Switch function, and both receivers use a set of standard XT30 plugs which also provides a safe and efficient way to provide power. By utilizing together with current overload wires on the channel ports, the connected device can be safeguarded.

Features

• Simultaneous Working Dual 2.4G TW Mode
• Basic Black-Box Data Record Function
• Built-in Power Switch Function | Match with Different External Switches (Optional)
• Long Control Range (Range varies based on the RF Power settings.)
• 12 Configurable Channel Ports
  – CP1: PWM / SBUS OUT / FBUS / S.Port / SBUS IN
  – CP2-12: PWM / SBUS OUT / FBUS / S.Port
• FBUS / S.Port
• SBUS Out Port (Supports 16CH / 24CH mode)
• SBUS In Port (Supports Signal Redundancy)
• Over-The-Air (OTA) FW update

Specifications

• Frequency: Dual 2.4GHz
• Dimension: 48.5*33*17.9mm (L*W*H)
• Weight: 22.5g
• Operating Voltage Range: 3.5 -10V (Recommend 2S Li-Batteries)
• Operating Current: ≤130mA
• Continuous Current: ≤20A (power the device) ｜ Instaneous Current: ≤40A (power the device)
• Voltage Measurement Range via AIN (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
• Compatibility: Twin series radio & TW protocol capable RF module
• Triple 2.4GHz Antennas
• Dual XT30 Power Input Connector

Package Include

• FrSky TW R12*1
