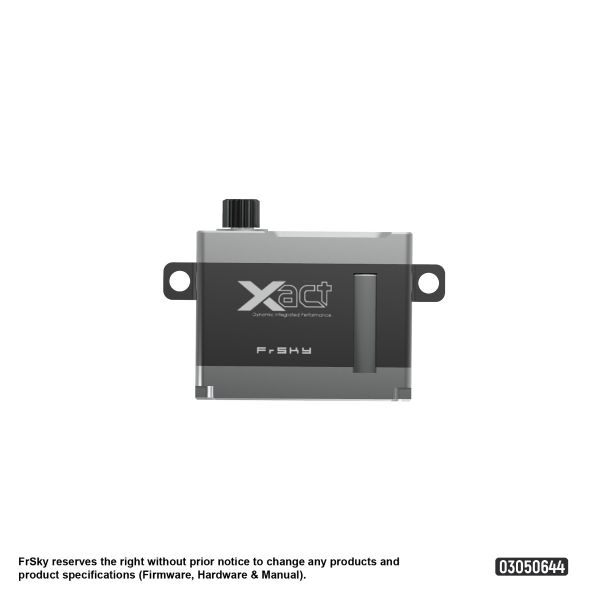

The Xact series coreless servos utilize all CNC machined aluminum protective cases and metal gears, the Xact 5800 series servos are 3.5V to 8.4V wide voltage capable and offer high speed and equivalent torque performance but feature lower profile and lightweight.

Also, the Xact series servos offer multiple form factors and configurations to fit different model types and precision usage. Working with the FBUS protocol, the telemetry data (like real-time current, voltage, etc.) of Xact servos can be achieved and transmitted back to the radio, and parameters like the servo center point and travel degrees for the configurations can be set easily with flexibility on FrSky radios.

Features

• For F3K (DLG)/ F5K Gliders
• Smaller Form Factors with Best Achievable Performance
• 7.5g Weight & 7mm Thick
• More Speedy Operation Response with Incomparable Torque Capability
• High Precision with Zero Slop
• Programmable Center-Point Positions and Travel Angles
• Built-in Hall Sensor
• Robust CNC Aluminum Case with Metal Gear

Specifications
