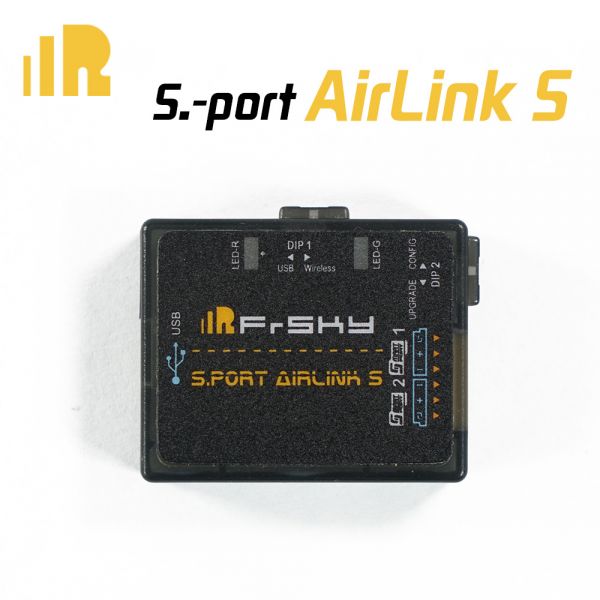

FrSky S.Port AirLink S

The S.Port AirLink S is a connecting tool to help you program and flash firmware to devices such as the S6R/S8R. It can be used by inserting into the USB port of a PC and connecting to the S.Port of the device. Or it can be used wirelessly through Bluetooth which allows wireless S6R/S8R configuration and real time telemetry dashboard.

(At the moment the Free Link app is only available in the Apple Store.)

Specifications

• Dimension: 37.9×30.9×9.9mm（L×W×H）
• Weight:6g
• Operating Voltage Range: 4-15V
• Operating Current: 88mA@5V

Features

• Configure the parameters of the device(S6R/S8R) with PC software in USB mode.
• Configure the parameters of the device(S6R/S8R) with PC software in wireless mode.
• Upgrade S.Port devices, configure and monitor sensors in USB mode.
• Monitor the receiver/sensor, configure sensors in wireless mode.

Download FrSky S.Port AirLink S Relevant Files
