FrSky Coreless Xact 5700 Series Glider Servos H5701 for F5K/D5701 for F3K DLG

The Xact series coreless servos utilize all CNC machined aluminum protective case and metal gears, the Xact 5700 series servos are 3.5V to 8.4V wide voltage capable and offer high speed and configurable torque performance. Also, the Xact series servos offer multiple form factors and configurations to fit different model types and precision usage.

Working with the F.Port 2.0 (FBUS) protocol, the telemetry data (like real-time current and voltage) of Xact servos can be achieved and transmitted back to the radio by connecting either F.Port 2.0 capable receiver or flight controller. All the preset servo options of speed and torque can be configured directly on an ACCESS radio through the host device of the F.Port 2.0 line, and the configurable servo steering as well as travel degree are additions now can be expected on this series.

FEATURES

• 5701 (D5701)  : For F3K (DLG)
  HV5701 (H5701) : For F3K (DLG) / F5K
• 6.5g weight & 6mm thick
• Speedy Response
• Incomparable Torque Performance
• High Precision with Zero Slop
• The Best Positioning Accuracy of Central Point
• Built-in Hall Sensor
• Programmable Travel Angle
• Robust CNC Aluminum Case with Metal Gear

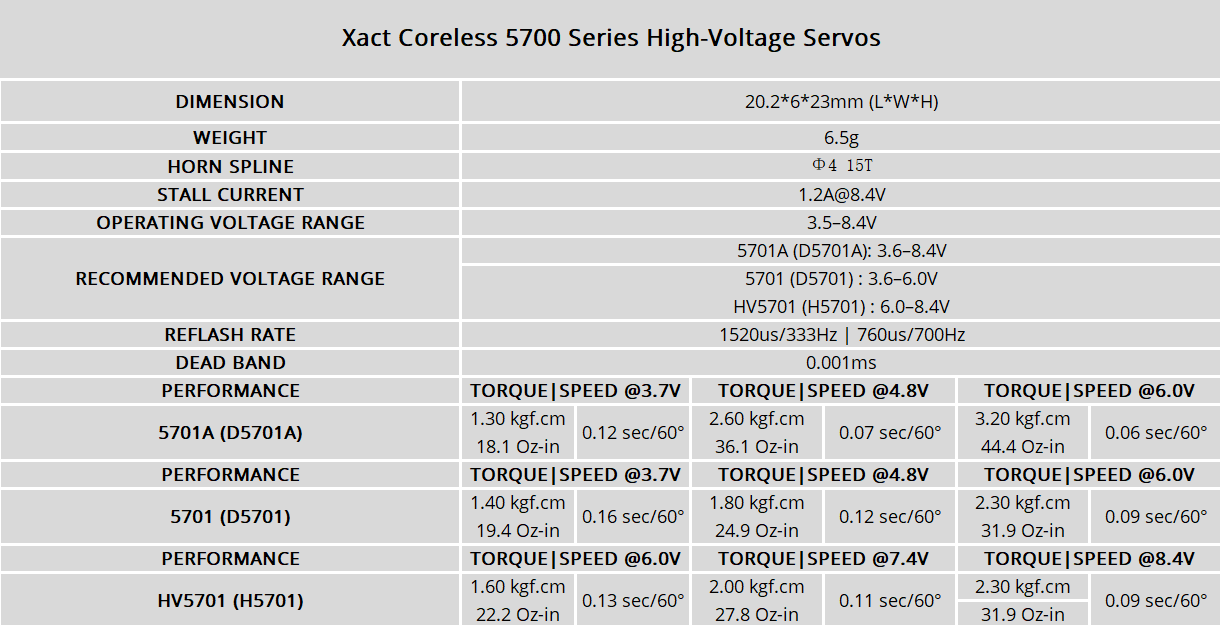

SPECIFICATIONS
