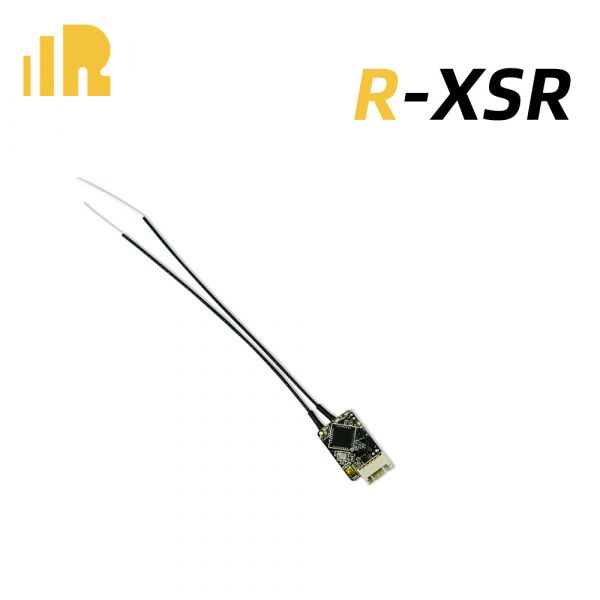

FrSky R-XSR Ultra Mini Redundancy Receiver

FrSky ultra mini receiver R-XSR is the evolution of FrSky full range XSR receiver. The R-XSR is a standalone receiver with all the functions of XSR, in addition, it's almost 1/3 size and 1/3 weight of XSR receiver. Moreover, there redundancy function is integrated into this tiny receiver ensures the security, and the IPEX connector makes it more convenient to replace antennas.

Specifications

• Dimension: 16*11*5.4mm (L*W*H)
• Weight: 1.5g
• Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
• Operating Voltage Range:3.0V~10V
• Operating Current:70mA@5V
• Firmware Upgradable
• Compatibility: FrSky X Series modules and radios in D16 mode

Feature:

• Ultra mini size and light weight
• Support telemetry and Smart Port enabled
• Full range
• Switchable SBUS/ CPPM signal output
• Supports redundancy function
• IPEX connector, replaceable antennas
