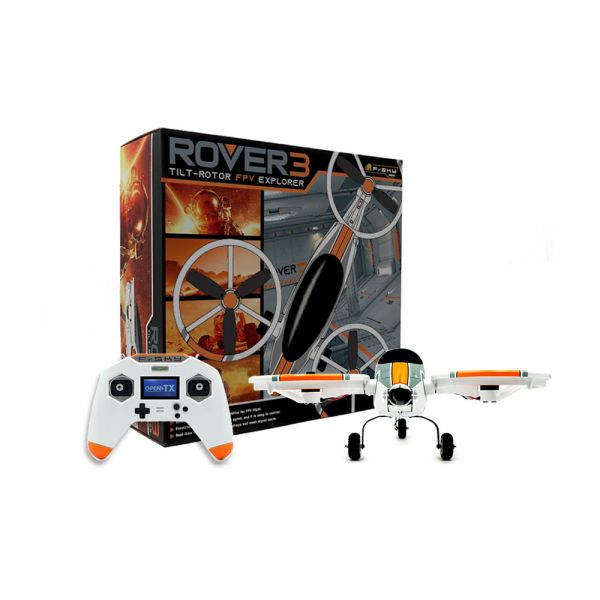

FrSky VANTAC ROVER3 Tilt-Rotor FPV Tricopter and X Lite S Transmitter combo

Rover3 Description

This unique multirotor platform is fun for pilots of all skill levels. Especially easy for the beginner because of its impressive stability and challenging enough for a seasoned pro. Stand out at your local flying field or just try something different with this unconventional airframe.

FUN FLIGHT ATTITUDES

Several unique flight modes are possible and are easy to control with the integrated 6-axis gyros.

TILT-ROTOR DESIGN AND LANDING GEAR

Dual servos steer the front rotors on this one-of-a-kind Tricopter. It also has a unique fuselage with a high-visibility color scheme for easy orientation while flying line-of-sight. Mounted wheels allow for the tricopter to taxi on the ground and perform smooth landings and impressive touch-and-goes.


ON-BOARD FPV CAMERA

The front-mounted FPV camera allows you to pilot the craft from the cockpit. This camera is equipped with a 600mW video transmitter that allows for clear and precise piloting of the tricopter. Power, channel, and band can be conveniently adjusted by push button or remotely via gtrans LUA script.

LIGHT-WEIGHT AND LONG FLIGHT TIMES

Extremely efficient and lightweight design gives this multirotor and impressive flight time of around 14 minutes with a 1300mah 3s Lipo battery.

SPECIFICATIONS

• Size: 310*300*120mm
• Weight: 220g (Without Battery)
• ESC: FrESC3IN1_20A ESC
• VTX: 5.8GHz 600mW Scout VS600 Mini
• Flight Controller: XSRF3O (With built-in XSR receiver)
• Motor: 1308 2500kv brushless motor
• Propeller: 4-inch propeller
• Camera: 14-17mm size FPV camera
• Compatible Battery: 11.1V/14.8V 800 - 1300mAh Li-Battery (Not included)
• Compatible Radio: All FrSky transmitters

X Lite S Description

With the growing acclaim of the new compact X-Lite form factor, FrSky is introducing this upgraded version. The Pro and FrSky X-Lite S versions combine all the benefits of the preceding design with the features of our full-sized radios, along with the newly developed ACCESS (Advanced Communication Control, Elevated Spread Spectrum) protocol.

Checking the airwaves for RF noise is now possible with the new spectrum analysis function added to the OpenTX firmware. FrSky X-Lite S version features the addition of a PARA wireless trainer function which makes them compatible with the FrSky Free Link App and AirLink S. The best thing about S model is that pilots can now expect even lower latency and enhanced performance due to our new ACCESS transmission protocol. With the integrated 6-axis sensor unit, pilots can use the radio as a motion-sensing controller to control the inputs of a model during flight or use it to point a camera in the desired direction. Like all of our transmitters, all of the beloved features from previous Taranis are included such as full haptic feedback and voice alerts, as well as telemetry and 24 channels and an additional 2 momentary buttons are installed.

***Pls.be noted:

The X, XM, RX, GX series receivers can be gradually upgarded to ACCESS protocol. It includes XM, RXSR, RX4R, RX6R, G-RX6, G-RX8, XM Plus, and R9 series. For more details about ACCESS, pls. visit: https://www.frsky-rc.com/frsky-advanced-communication-control-elevated-spread-spectrum-access-protocol-release/

Specifications

• Number of channels: 24 channels
• Internal RF module: ISRM-S
• Weight: 308g / 376g (with battery)
• Operating voltage range: 6.0 ~ 8.4V
• Operating current: 190mA@7.4V
• Operating Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
• Backlit LCD resolution: 128*64
• Model memories: 60 models (expandable by micro TF card)
• Micro USB interface: supports 2S Li-battery balancing charge
• Compatibility: ACCESS and ACCST D16 mode receivers

Features

PACKAGE INCLUDED

• 1x FrSky VANTAC ROVER3
• 1x X Lite S Transmitter
• 2x Sets 2-Blade Props
• 1x Manual
